P-wave Shadow Zone

Delve into the seismic mysteries of the Earth’s interior with an in-depth look at the P-wave shadow zone, revealing the planet’s layered composition.

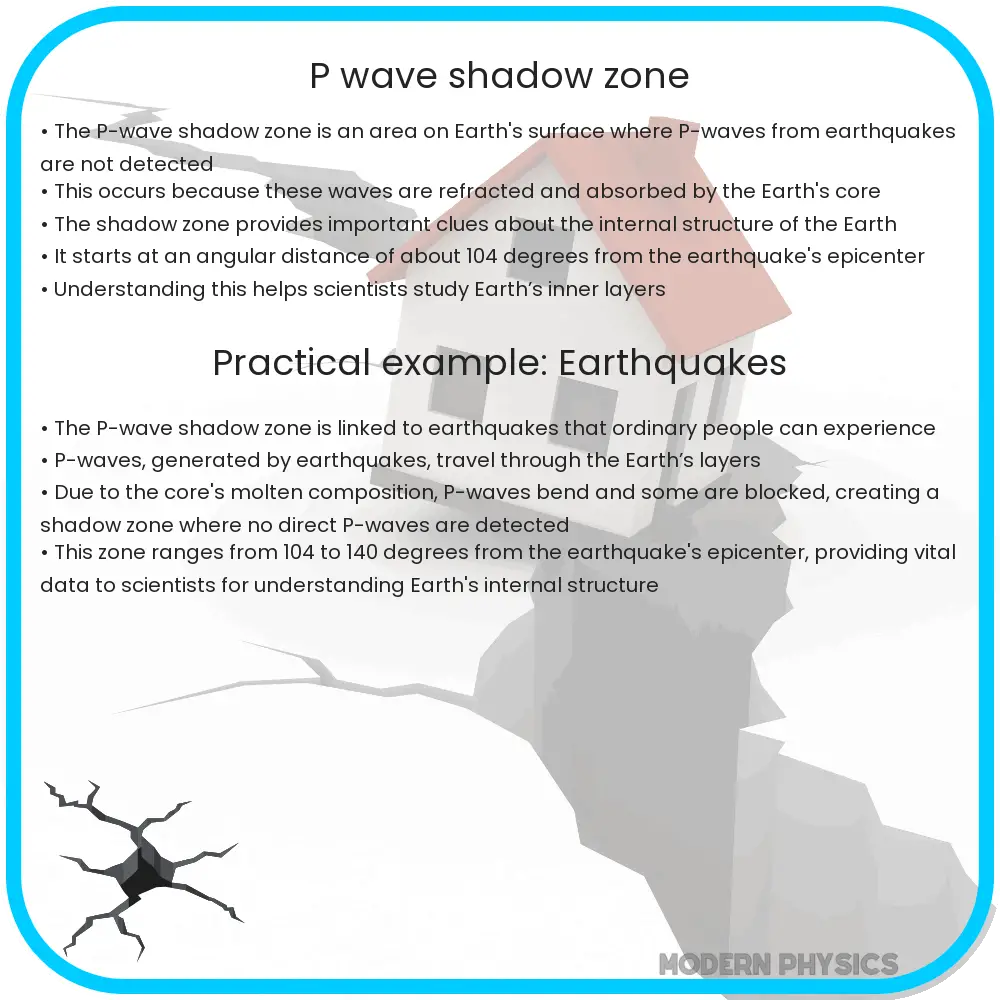

Understanding the P-wave Shadow Zone

When an earthquake occurs, it releases energy that travels through the Earth in the form of seismic waves. Geologists and seismologists gain valuable insight into the Earth’s interior by studying these waves. Among the types of seismic waves, P-waves, or primary waves, are particularly interesting due to their behavior as they travel through different layers of the Earth, leading to the phenomenon known as the P-wave shadow zone.

P-waves are compressional waves that can move through both solid rock and layers of molten materials. Unlike surface waves, which are confined to the exterior layer of the Earth, P-waves travel through the entire planet. As a result, these waves can offer clues about the composition and structure of the Earth’s core and mantle. However, there is an area on the Earth’s surface, known as the P-wave shadow zone, where these waves are noticeably absent after an earthquake.

Seismic Detection and the Earth’s Internal Structure

Seismographs strategically positioned around the globe detect seismic waves and help map out how they propagate through the Earth. Using these instruments, scientists have discovered that P-waves disappear, or are significantly diminished, at certain locations following an earthquake. The P-wave shadow zone occurs at angles between approximately 104° to 140° from the earthquake’s epicenter.

This shadow zone is explained by the refraction (bending) and reflection (bouncing) of waves. The Earth’s core consists of a liquid outer core and a solid inner core, with very different seismic properties from the mantle above it. P-waves slow down as they enter the denser outer core and change direction due to refraction. This bending of the waves leads to a zone where the P-waves are not detected by seismographs because the waves are diverted away from their original paths.

• The velocity change is due to the difference in density and composition between the mantle and the outer core.
• The magnitude of the refraction is determined by Snell’s Law, which in seismology can be expressed as V1*sin(i1) = V2*sin(i2), where V1 and V2 are the seismic velocities in the mantle and core, respectively, and i1 and i2 are the angles of incidence and refraction.
• The solid inner core affects P-waves differently, often speeding them up again and altering their path, which adds complexity to the P-wave shadow zone.

Further analysis of the P-wave velocities suggests that there’s a drastic change at what we call the core-mantle boundary. The presence of the shadow zone and the behavior of P-waves have led to significant revelations about the Earth’s core – supporting the theory that it is composed of a liquid outer layer and a solid inner core.

Practical Implications of Studying P-waves

The study of P-waves extends beyond academic curiosity. Understanding how these waves travel through the Earth has practical applications in several fields. For example, by analyzing the data from seismic waves, geologists can locate oil, gas, and other mineral deposits. This is because different materials will alter the speed and direction of P-waves, creating a unique signature on the seismographs that experts can interpret.

Additionally, P-wave data is essential for earthquake early warning systems. In an earthquake, P-waves are the first to arrive and can be detected before the more destructive S-waves and surface waves follow. Being able to quickly identify P-waves allows systems to provide alerts, offering valuable seconds or even minutes for people to take cover or for automatic safety systems to shut down critical infrastructure, such as gas lines or trains, to mitigate damage.

• Detection of P-waves provides a precursor signal to more destructive waves, potentially saving lives and property.
• The velocity and direction of P-waves help in the exploration of natural resources by indicating the presence of different subsurface materials.

Continued Research and Technological Advances

Researchers continue to refine their understanding of P-waves and the Earth’s interior through advancements in seismic detection technology. More sensitive and accurate seismographs allow for a better resolution of seismic data, which in turn leads to more detailed models of the Earth’s internal structure. With improved computational power, scientists can simulate seismic wave propagation in complex geological conditions, enhancing our ability to interpret the data gathered from natural earthquakes.

Technology also plays a critical role in expanding the global network of seismic stations. This allows for a more comprehensive capture of seismic wave information, improving the coverage of monitoring systems and the accuracy of their interpretations. The advancement in global communication networks ensures that data from distant earthquakes can be analyzed in real-time, contributing to more effective earthquake response and preparedness efforts worldwide.

• Advances in seismograph technology lead to better data and thus a finer understanding of the Earth’s interior.
• A denser network of seismic stations offers broader and more accurate data coverage.

Conclusion

The concept of the P-wave shadow zone is a fascinating glimpse into the complex behavior of seismic waves within the Earth’s interior. By studying the patterns and anomalies such as the shadow zone, scientists have pieced together a model of the Earth’s core-mantle boundary and gained insights into geological processes that remain invisible to us on the surface. The study of P-waves not only enriches our understanding of the planet but also provides practical benefits in mineral exploration, disaster preparedness, and safety. Continued advancements in technology and global collaboration enhance the capabilities within seismology, promising to further extend our knowledge about the Earth’s inner workings and improve our ability to protect and utilize our planet’s resources.
