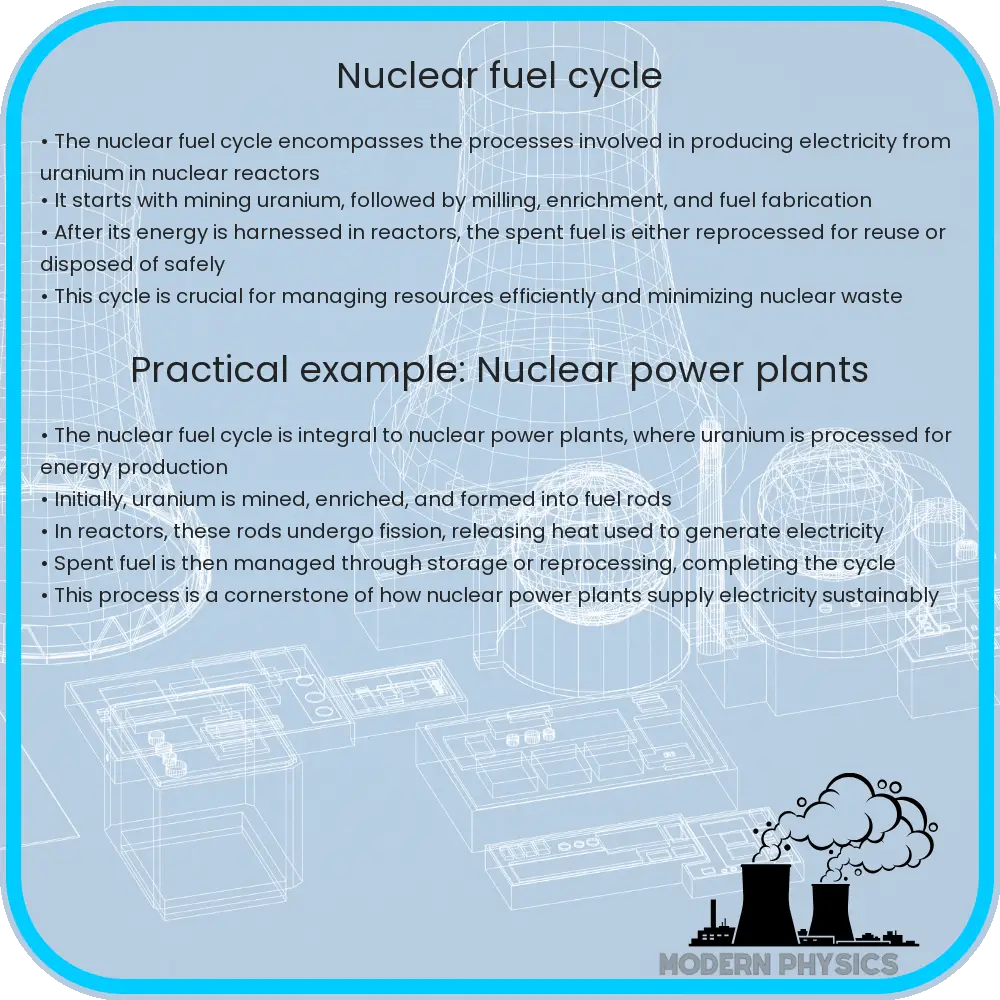

Understanding the Nuclear Fuel Cycle
The nuclear fuel cycle is a series of processes involved in the production of electricity from uranium in nuclear power reactors. The cycle spans from mining the uranium ore to the disposal of nuclear waste. This multifaceted process ensures the efficient and safe usage of nuclear fuel to generate energy. The following is a comprehensive breakdown of the various stages in the nuclear fuel cycle.
Stages of the Nuclear Fuel Cycle
The nuclear fuel cycle can be divided into several major steps:
- Mining and Milling
The first step in the nuclear fuel cycle is the extraction of uranium from the earth. Uranium is commonly found in small quantities in rocks all over the world. Mining can be conducted in either open pits or underground, depending on the depth and concentration of uranium. Once extracted, the ore is crushed and ground into fine particles, and uranium is chemically separated from the ore in a milling process. The result is a concentrated powder known as yellowcake (U3O8).
- Conversion
After milling, yellowcake is transported to a conversion facility. Here, it is converted into uranium hexafluoride (UF6), a chemical form suitable for enrichment. During this process, the yellowcake is refined and reacted with fluorine to form UF6.
- Enrichment
Uranium found naturally has about 99.3% of uranium-238 and 0.7% of uranium-235. However, most nuclear reactors require the uranium-235 concentration to be increased to about 3-5%. This process of increasing the proportion of uranium-235 is called enrichment. It is usually accomplished by gas centrifuges that separate the lighter uranium-235 from the heavier uranium-238 based on their mass differences.
- Fuel Fabrication
After enrichment, UF6 is converted into uranium dioxide (UO2), a ceramic material that is pressed into pellets. These pellets are then encased in thin tubes made of zirconium alloy or stainless steel, known as fuel rods. Several fuel rods are bundled together to form a fuel assembly, which is used in a nuclear reactor.
This cycle—from mining and extraction to fuel assembly—comprises the front end of the nuclear fuel cycle. What follows is the in-reactor use of the assembled fuel and its later handling as waste, components that encompass the back end of the nuclear fuel cycle. The back end processes are critical for managing used fuel and minimizing environmental impacts.
Back End of the Nuclear Fuel Cycle
The back end of the nuclear fuel cycle involves handling the fuel after it has spent time in a reactor. This stage is crucial for managing nuclear waste and ensuring environmental and public safety.
- Used Fuel Storage
Once nuclear fuel is spent, it is still highly radioactive and generates a significant amount of heat. Initially, the used fuel assemblies are stored in a pool of water at the power plant. The water cools the fuel and provides radiation shielding. After several years, the spent fuel may be transferred to dry cask storage, which is a more permanent solution.
- Reprocessing
In some countries, spent nuclear fuel is reprocessed to extract usable materials such as remaining uranium and plutonium. These materials can be recycled into new fuel, reducing the amount of waste. However, reprocessing is complex and expensive, and not all countries opt to include it in their nuclear fuel cycle.
- High-Level Waste Disposal
The ultimate challenge in the nuclear fuel cycle is the disposal of high-level nuclear waste. This waste includes fission products and other radioactive materials that remain highly radioactive for thousands of years. The most promising solution is geological disposal—burying the waste deep underground in stable geological formations. Research and debates on the best methods and locations for geological disposal are ongoing.
The completion of the back end of the nuclear fuel cycle is crucial for minimizing the long-term environmental impact of nuclear power. These measures ensure that the risks associated with radioactive materials are managed effectively throughout and beyond the lifespan of nuclear power plants.
Conclusion
The nuclear fuel cycle is a critical component of nuclear power generation, encompassing a range of processes from uranium mining to waste disposal. Each stage of the cycle has been developed to maximize efficiency and minimize environmental impact. Understanding the nuclear fuel cycle highlights the complexities and responsibilities of using nuclear energy. It is essential for ensuring energy security, reducing carbon emissions, and managing nuclear materials responsibly. The continued research and development in each stage of the nuclear fuel cycle promise to enhance safety and efficiency in the use of nuclear energy further.
