Laser collimation ensures laser beams are parallel for precision in medical, industrial, and scientific applications, maintaining clarity and alignment over long distances.
Laser Collimation: Precision, Alignment & Clarity in Optics
Lasers are fascinating tools that find applications in numerous fields, from medicine to entertainment. One of their key characteristics is their ability to produce highly collimated beams of light. But what exactly is laser collimation, and why is it so crucial in optics? Let’s delve into the fundamentals of laser collimation, focusing on precision, alignment, and clarity.
What is Laser Collimation?
Collimation refers to the process of aligning the light rays in a beam so that they are parallel to each other. A collimated light beam does not spread out or diverge as it travels, which is particularly useful for precision applications. When you hear about a “collimated laser beam,” it means the beam maintains its focus and coherence over long distances.
Importance of Collimation in Lasers
- Precision: Collimated beams can travel long distances without spreading out, making them ideal for applications requiring high precision, such as measuring distances or targeting in military applications.

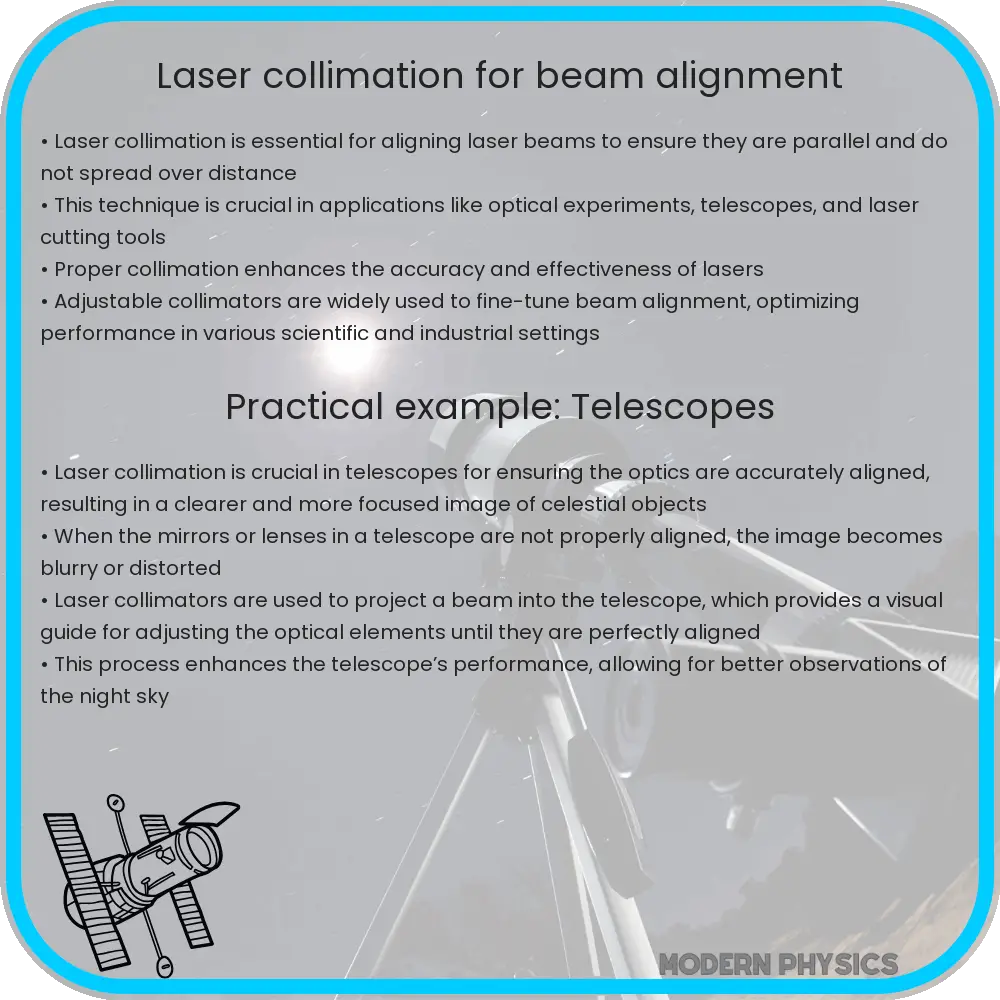

- Alignment: Collimation is critical for aligning optical components in systems like telescopes and microscopes. Proper alignment ensures that the light paths are optimized, which enhances the overall performance of the optical setup.
- Clarity: A collimated beam maintains its intensity over a distance, providing a clear and coherent light source. This clarity is essential in both imaging applications and optical communication systems.
How Laser Collimation Works
The process of collimating a laser beam typically involves the use of lenses or mirrors. These optical components are carefully positioned to align the rays of the laser light so that they run parallel to each other. Here are the main methods used for laser collimation:
- Lenses: A collimating lens, usually a convex lens, is positioned at a specific distance from the laser source. The curvature and focal length of the lens are chosen to make the diverging rays from the laser source parallel. The key equation here is the lens formula: \(\frac{1}{f} = \frac{1}{d_o} + \frac{1}{d_i}\), where \(f\) is the focal length, \(d_o\) is the object distance (distance from the laser source), and \(d_i\) is the image distance (distance to the point where rays converge).
- Mirrors: Collimating mirrors are often used in high-power laser systems. These mirrors are curved in such a way that they can reflect the diverging light rays and make them parallel.
In both cases, the optical components must be precisely positioned and angled to ensure that the resulting beam is perfectly collimated. This process demands a high level of accuracy, as even minute misalignments can cause the beam to spread over time.
Applications of Collimated Lasers
Collimated lasers have a wide range of applications due to their precision, alignment, and clarity:
- Medical Applications: In surgery, particularly in procedures requiring high precision, such as eye surgery, collimated lasers are used to make clean and accurate incisions.
- Industrial Applications: In manufacturing, collimated lasers are used for cutting, welding, and engraving, where precision and control are paramount.
- Scientific Research: Collimated lasers are used in various research activities, including spectral analysis and laser-induced fluorescence.
- Telecommunications: Optical fiber communication relies heavily on collimated laser beams to transmit data over long distances with minimal loss.
Challenges in Laser Collimation
Despite the vast benefits of laser collimation, achieving and maintaining a perfectly collimated beam can be challenging. Some of the common challenges include:
- Thermal Effects: Changes in temperature can cause materials to expand or contract, leading to misalignment of optical components.
- Mechanical Vibrations: Vibrations, even those that are imperceptible to humans, can disturb the alignment of the mirrors and lenses, affecting the collimation.
- Material Imperfections: Defects or impurities in the lenses or mirrors can scatter the light, causing the beam to become less collimated over time.
Addressing these challenges often involves advanced engineering solutions, such as using temperature-stabilized environments, vibration isolation tables, and high-quality optical materials.
Advancements in Collimation Technology
Modern advancements in laser collimation technology are continually improving the efficiency and precision of collimated beams. Some noteworthy advancements include:
- Adaptive Optics: This technology uses deformable mirrors and other optical elements that can change shape in real-time to compensate for optical distortions, ensuring the beam remains collimated.
- Automated Alignment Systems: These systems use sensors and computer algorithms to continuously monitor and adjust the alignment of optical components, maintaining collimation without manual intervention.
- High-Quality Coatings: Anti-reflective and other specialized coatings on lenses and mirrors reduce light losses and improve the overall quality of the collimated beam.
Future Prospects
The future of laser collimation looks promising, with potential innovations on the horizon that could make lasers even more versatile and powerful. Potential advancements may include:
- Miniaturization: Developing smaller, more compact collimation systems that can be integrated into portable devices.
- Increased Power and Efficiency: Engineering lasers that can provide higher power outputs without compromising the collimation quality.
- Integration with Emerging Technologies: Collimated lasers could be integrated with emerging technologies like quantum computing and photonic circuits, opening up new avenues for research and development.
Conclusion
Laser collimation is a cornerstone of modern optics, influencing a vast array of applications across medical, industrial, scientific, and telecommunications fields. By enabling high precision, perfect alignment, and exceptional clarity, collimated lasers continue to revolutionize how we interact with and utilize light. Despite challenges, ongoing advancements in technology promise to further enhance the capabilities and versatility of collimated lasers, paving the way for new innovations and applications. As we look to the future, the importance of laser collimation is set to grow, driving forward advances in science and engineering that could change the world in ways we are just beginning to imagine.
