Understanding Convex Lenses: Fundamentals of Focus, Magnification, and Image Formation

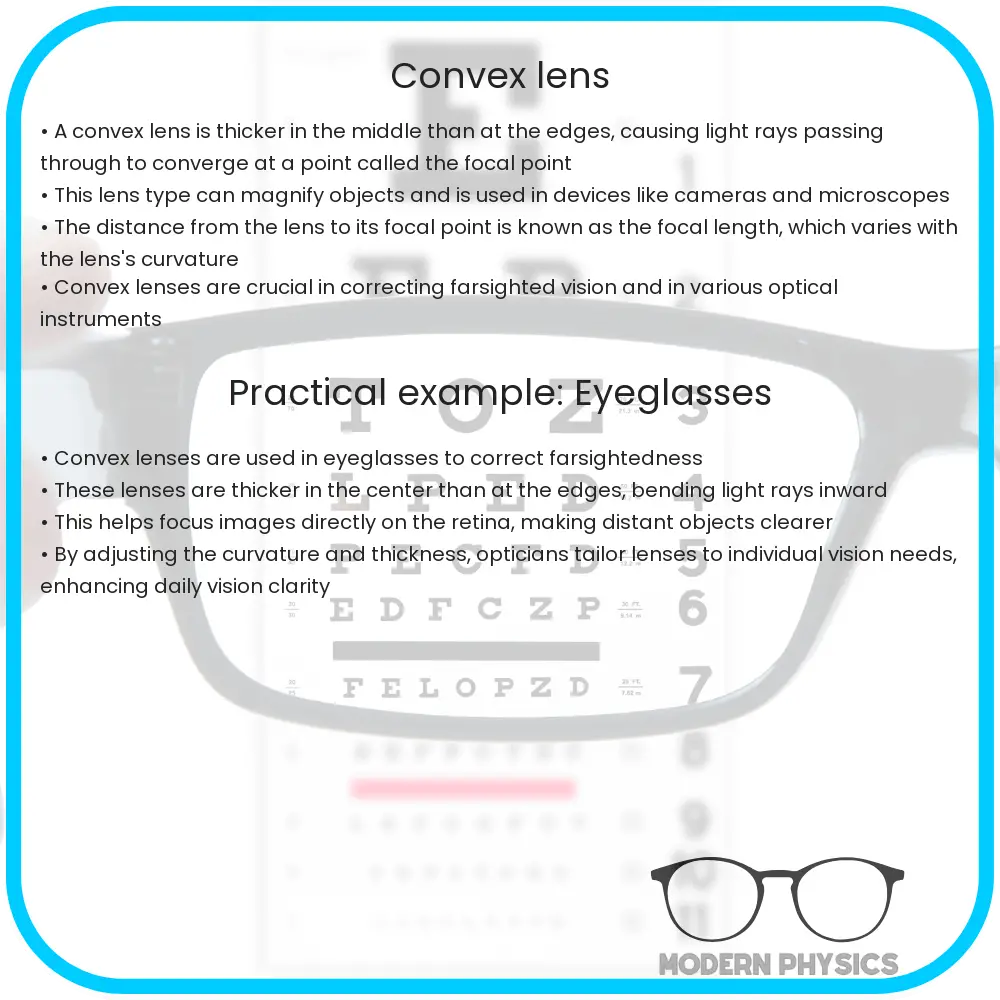

Convex lenses, a cornerstone of optical physics, are pervasive in our daily lives, from eyeglasses to cameras. These lenses are characterized by their curved shape, where the center is thicker than the edges. This unique structure plays a pivotal role in how they manipulate light, offering a variety of practical applications.
Focus and Focal Length in Convex Lenses
The focal point of a convex lens is the specific point where parallel rays of light converge after passing through the lens. The distance between the lens’s center and this focal point is known as the focal length, a crucial parameter in determining the lens’s optical power. A shorter focal length denotes a stronger lens, capable of bending light rays more sharply. The focal length is not only a physical attribute but also a fundamental concept in lens formula calculations, which is essential for understanding lens behavior.
Magnification: How Convex Lenses Enlarge Images
Magnification is a measure of how much larger or smaller an image appears compared to its actual size. In convex lenses, magnification depends on the object’s position relative to the lens and its focal length. When an object is placed beyond the focal length, a real, inverted image is formed. Conversely, if the object is within the focal length, the lens produces a virtual, upright, and magnified image. This principle is what allows magnifying glasses to enlarge the text or details on an object.
Image Formation by Convex Lenses
The process of image formation in convex lenses is governed by a set of rules known as lens formula and ray diagrams. These tools help in predicting the location, size, orientation, and type of image formed. There are three critical positions to consider:
- When the object is beyond the focal point, the lens forms a real and inverted image.
- If the object is at the focal point, no image is formed as the light rays emerge parallel.
- When the object is between the focal point and the lens, a virtual, upright, and magnified image is created.
This behavior of convex lenses is integral to their use in various optical devices, providing a foundation for advancements in both science and technology.
Advanced Applications of Convex Lenses
Convex lenses have a myriad of applications in modern technology and science. In the medical field, they are instrumental in creating detailed images in devices like microscopes and endoscopes. In astronomy, convex lenses are the heart of telescopes, enabling the observation of distant celestial bodies. Furthermore, they are fundamental in photographic equipment, projecting and focusing light onto film or digital sensors to capture crisp images.
Convex Lens Equations: Ray Tracing and Mathematical Modeling
The behavior of light through convex lenses is quantitatively described by the lens formula: \( \frac{1}{f} = \frac{1}{d_o} + \frac{1}{d_i} \), where \( f \) is the focal length, \( d_o \) is the distance from the object to the lens, and \( d_i \) is the distance from the image to the lens. This formula, in conjunction with the magnification equation \( M = -\frac{d_i}{d_o} \), allows for precise calculations of image properties. Ray tracing diagrams complement these equations, offering a visual representation of how light rays are refracted by the lens.
Challenges and Limitations
Despite their versatility, convex lenses have limitations. Aberrations, such as chromatic and spherical aberrations, occur when lenses fail to focus all colors or light rays to a single point, respectively. These imperfections can distort images, posing challenges in precision optics. Advances in lens design and materials aim to minimize these aberrations for clearer and more accurate image reproduction.
Conclusion
Convex lenses are a fundamental element in optics, with their ability to focus and magnify light opening up a world of possibilities across various fields. From enhancing vision to exploring the cosmos, these lenses play a pivotal role in many technological and scientific advancements. Understanding the principles of focus, magnification, and image formation is essential for appreciating the full potential of convex lenses. While they have limitations, ongoing research and development continue to expand their applications and efficacy. The study of convex lenses not only illuminates the path of light but also sheds light on the limitless potential of human innovation and curiosity.
